C115 Transmission

c115
c115

Powerful, durable and built for demanding off-highway performance

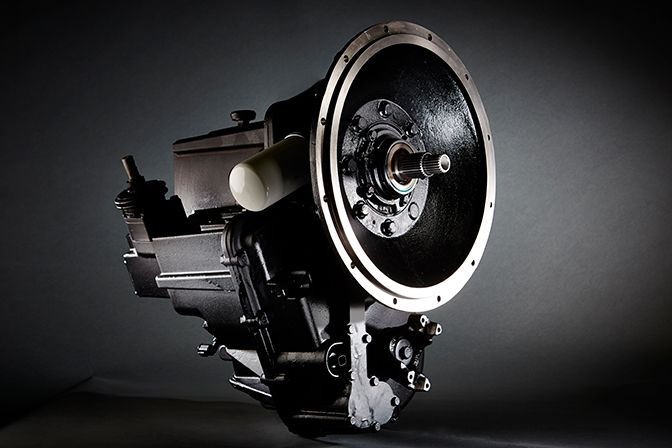

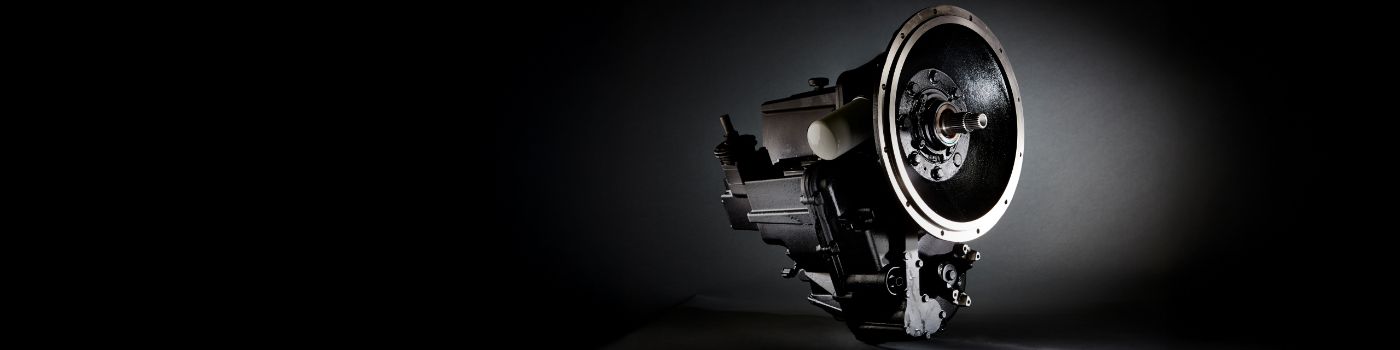

The C115 is a heavy-duty manually selected synchro shuttle transmission designed for strength, control and lasting reliability in demanding off-highway environments. With up to 86kW (115hp) of engine power and 734 Nm (571 lb ft) of torque capacity, it provides smooth, responsive performance and dependable operation across a wide range of OEM applications.

With precision helical gearing, tapered roller bearings and a co-axial auxiliary pump drive, the C115 combines Turner’s proven engineering with robust construction and versatile functionality, giving OEMs a transmission that performs reliably, shift after shift.

Features at a Glance

  • Rated input Power: up to 86kW (115hp)
  • Rated input Torque: up to 734Nm (571lb.ft)
  • 4 forward and 4 reverse speeds
  • 2- or 4-wheel drive configurations available
  • Co-axial hydraulic pump drive (SAE B-14T, 4-bolt design)
  • SAE 3 engine mounting
  • Modulated, electro-hydraulic, oil cooled multidisc clutches
  • SAE 1410 output yokes
