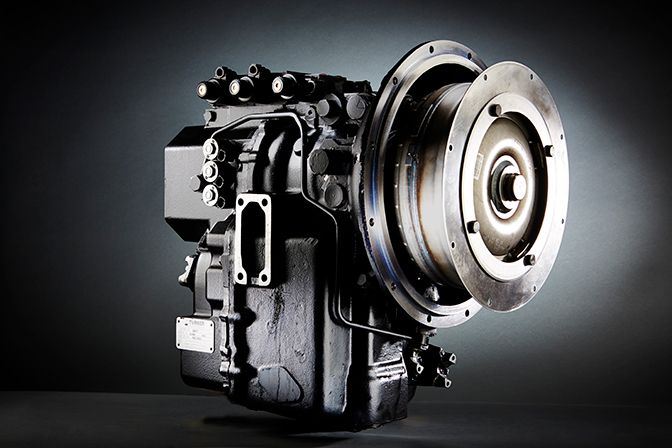

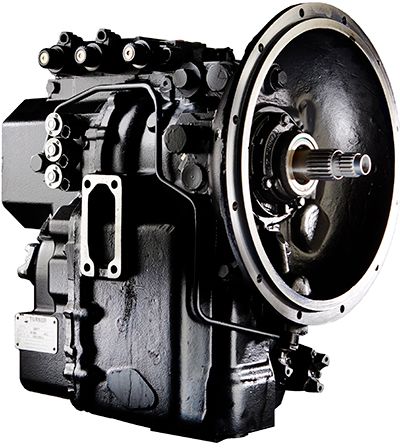

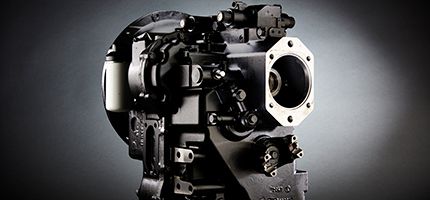

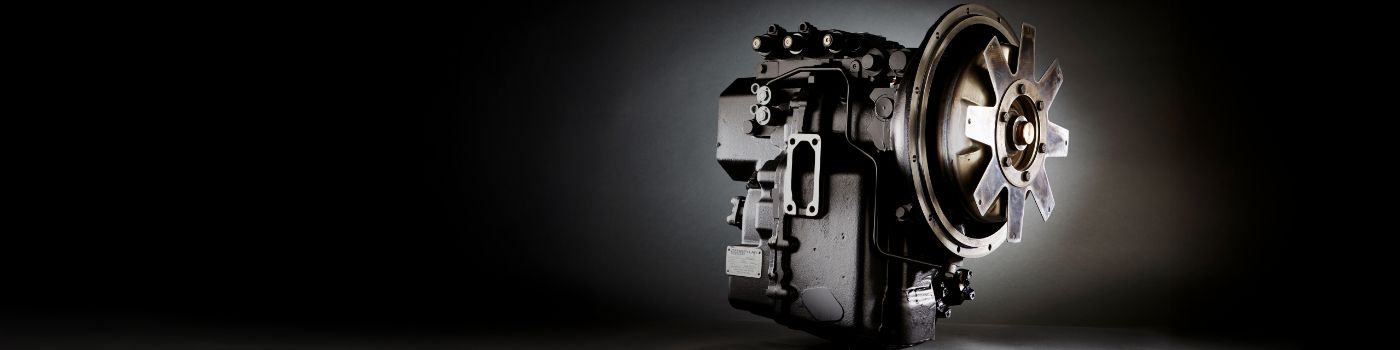

PG115 | Turner Power Train

Autoshift capability and proven reliability

The PG115 is a versatile powershift transmission built for OEMs who need dependable performance in demanding applications.

With six forward and three reverse speeds, smooth shifting and integrated electronic controls enabling autoshifting, the PG115 is designed for machines ranging from backhoe loaders to telescopic handlers.

Features at a Glance

Rated input Power :up to 95kW (130hp)
Rated input Torque: up to 800Nm (600lb.ft)
6 forward speeds, 3 reverse speeds (programmable to 4F/3R)
2WD, selectable 2/4WD and permanent 4WD variants
Co-axial hydraulic pump drive and non co-axial options available
Optional park brake, sensors and hydraulic pump configurations
SAE 3 converter housing for engine mounting
Modulated, electro-hydraulic, oil cooled multidisc clutches
SAE 1410 output yokes

Key benefits

Durable and reliable – refined design with a proven long service life
Productivity-focused – easy gear changes and directional shifts without braking reduce cycle times
Operator comfort – precision helical gearing lowers noise and fatigue
Compact and adaptable – simple installation with options to match a wide range of OEM applications
Smart controls – supplied with electronic controller featuring illegal shift/start inhibits, kick-down and hold-to-lower-gear functions

Designed for performance

The PG115 combines electronically controlled gear selection with hydraulically operated clutches to deliver smooth, efficient shifting.

Helical gears improve load capacity and reduce noise, while tapered roller bearings counter axial forces for long-term reliability. Robust casing designs maintain precise alignment, even under tough operating conditions.

With multiple configuration options, including auxiliary pump drives and advanced sensors, the PG115 is engineered for flexibility, as well as strength.
