• Rated input Power: up to 90kW (120hp)
• Rated input Torque: up to 800Nm (600lb.ft)
• 4 forward and 4 reverse gears, fully synchronised
• 2WD, selectable 2/4WD and permanent 4WD variants
• Co- axial hydraulic pump drive and non co-axial options available
• Wide range of gear ratios for optimised performance
• SAE 3 converter housing for engine mounting
• Modulated, electro-hydraulic, oil cooled multidisc clutches
• SAE 1410 output yokes

• Trusted durability – refined design with industry-leading reliability and long service life
• Operator comfort – smooth, easy shifting with precision helical gearing to reduce noise and fatigue
• Efficient performance – fully synchronised gear changes and ‘shuttle on the move’ for faster cycle times
• Flexible design – compact layout for easier installation, with 2WD, 4WD and extensive options to fit your application
• Application ready – proven in telescopic handlers, rough terrain forklifts, site dumpers, mining support vehicles and industrial machines

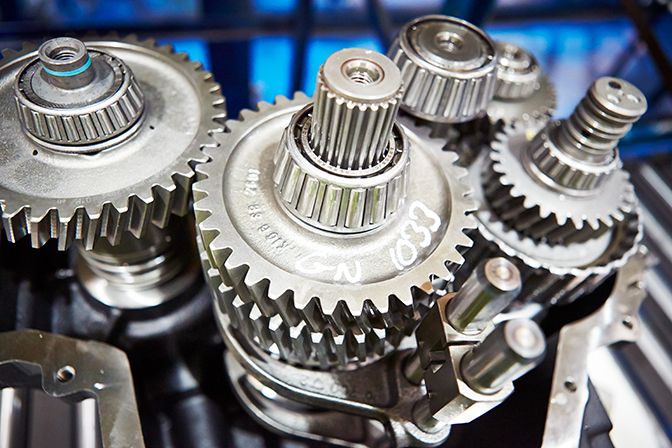

The Compact Plus uses precision helical gearing to reduce noise, improve load capacity and extend gear life.

Tapered roller bearings counter axial forces for smooth operation, while robust casing designs maintain alignment under tough conditions.

With options for integrated hydraulic supply and auxiliary pump installation, it delivers flexibility as well as proven strength.
